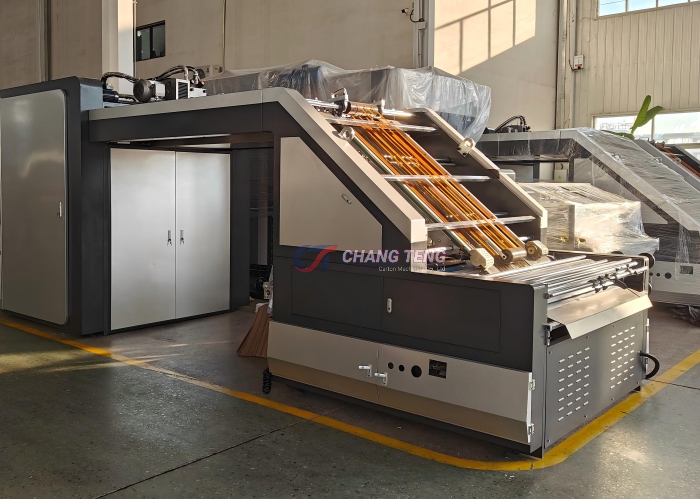

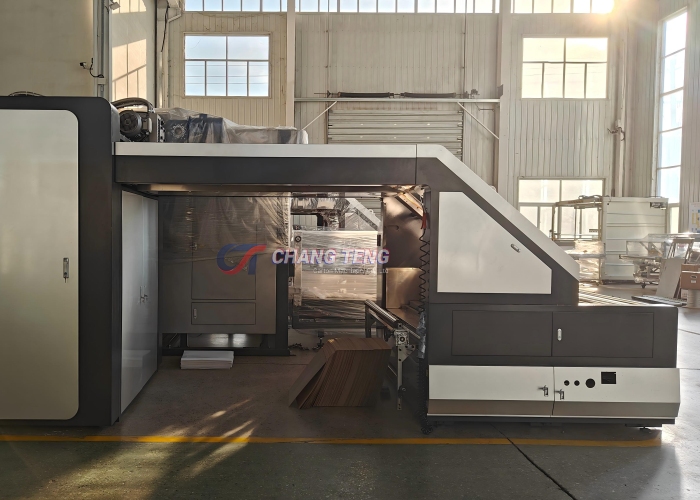

The High-Speed Flute Laminating Machine is a carton converting machine designed for high-speed and precise laminating of printed sheets and color-printed paper with corrugated board, grey board, and other substrates. It is widely used in the production of corrugated cartons, color boxes, luxury packaging boxes, gift boxes, and other paper-based packaging products.

The High-Speed Flute Laminating Machine is ideal for high-volume carton orders. With a designed production speed of up to 20,000 sheets per hour, the machine features high-speed automatic top-sheet feeding, vacuum suction feeding for bottom sheets, servo synchronization control, and a precision positioning system to achieve fast, stable, and accurate laminating.

The machine is also equipped with an automatic glue replenishment system, glue circulation and recovery system, and synchronized pressure roller adjustment. These features help maintain high laminating accuracy and finished-product quality while improving production efficiency and reducing material and glue consumption.

*Designed for high-volume, high-efficiency packaging production, the machine is available in different speeds and configurations to meet various customer requirements.

Intelligent High-Speed Laminating：
High-speed intelligent laminating with a production capacity of up to 20,000 sheets per hour for sheets up to 700 mm in size.

High-Speed Feeding System
The feeding system combines vacuum suction feeding with a high-speed conjugate cam-type feeder head, ensuring smooth, stable, and accurate sheet feeding even at high operating speeds.

Glue Application System
The high-precision glue application and conveying system is equipped with side guide structures for the sheets and glue roller, enabling automatic sheet control. The system prevents glue overflow during high-speed operation and allows adjustment of glue return flow to minimize glue consumption and waste.

Sensing and Compensation Registration System
Multiple photoelectric sensors detect the relative position of the bottom sheet during feeding. The servo motors on both sides of the top-sheet feeding system provide independent compensation, ensuring precise and smooth registration between the top and bottom sheets.

Fully Integrated Electrical Control System
The machine uses an HMI (Human-Machine Interface) and PLC control system with indicator displays. It can automatically detect abnormal operating conditions and display machine operating status and production records.

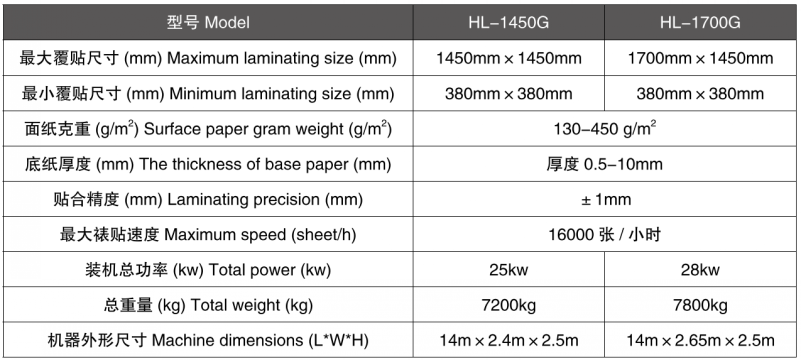

Machine Specifications
