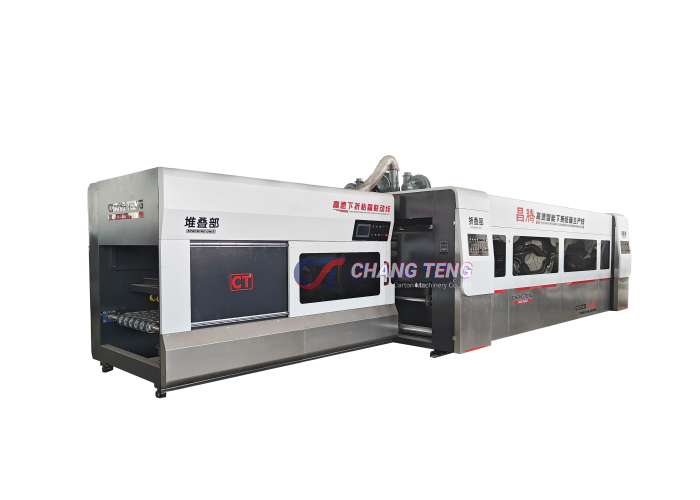

The Automatic Carton Folder Gluer Line is a high-efficiency carton converting solution designed for the automated forming of corrugated cartons. It integrates automatic feeding, folding, gluing, bonding, pressing, counting, and output into one continuous production process.

The entire carton production line adopts PLC control and servo drive technology, enabling coordinated operation of each working section. It is easy to operate and allows quick job changeover, helping improve carton production efficiency and gluing quality while reducing labor requirements and production costs.

The machine is suitable for high-volume folding and gluing of corrugated cartons. The line can be configured according to carton size, board material, production speed, and product type. Customized configurations and automated production solutions are also available for special requirements.

Features & Specifications

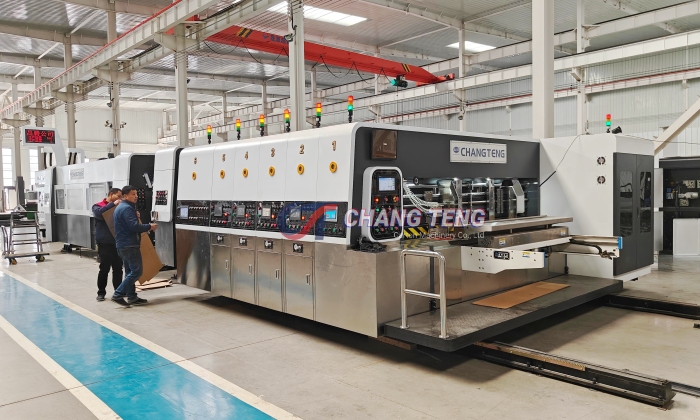

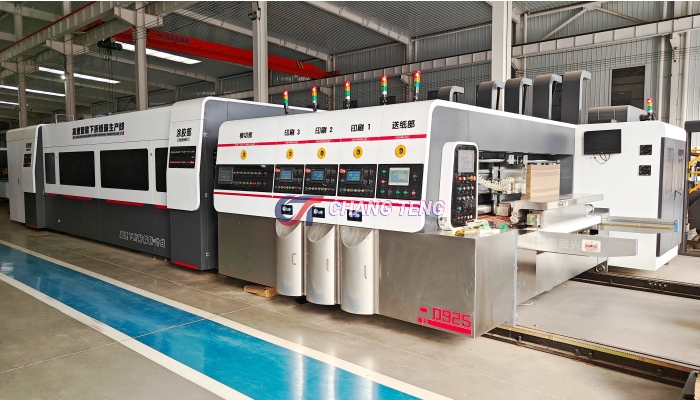

• Integrated Production Line: Can be connected to a carton printing machine to integrate printing, slotting, die cutting, gluing, folding, alignment, counting, bundling, strapping, and output into a continuous production line.
• Integrated Line Control: The entire line is controlled through a centralized system, with computer-based order storage, remote operation, and digital parameter input for convenient production management.
• High-Quality Transmission Components: Key transmission components use imported-brand bearings and high-speed transmission belts to ensure stable and reliable operation.
• Power:
  Folder Gluer Section: 8 kW
  Strapping Section: 2 kW
• Machine Dimensions:
  Folder Gluer Section: 10 × 2.5 m
  Strapping Section: 4 × 2 m
• Gluing System: Equipped with stainless-steel glue application rollers, offering corrosion resistance and uniform glue application. A spray gluing system is also available as an option.
• Electrical Components: International leading-brand electrical components are used to ensure stable and reliable performance. Special specifications can be designed and manufactured according to customer requirements.
• Board Compatibility: Suitable for processing 3-ply and 5-ply corrugated board with a thickness of 2–8 mm.

Machine Specifications：
