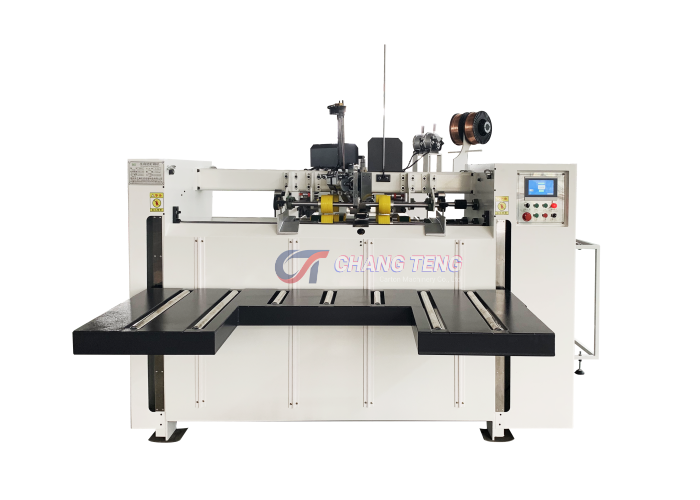

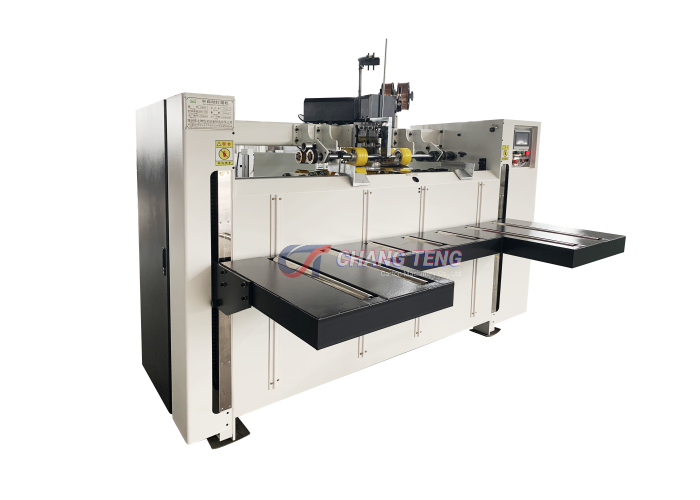

The Semi-Automatic Carton Stitching Machine is a key piece of equipment for corrugated carton forming, mainly used for stitching single-piece or two-piece cartons. The machine is available in both single-piece and two-piece models. It features a servo motor-driven feeding system, combined with a reliable transmission system and photoelectric sensors, enabling precise control of the stitching pitch and compatibility with corrugated boards of different thicknesses.

Key Features：

• Single, double, and reinforced stitching can be completed in one operation.
• Quick size changeover in as little as one minute. Easy to operate and requires no prior experience.
• The electrical components of the machine are selected and configured in accordance with European standards.
• Only two operators are required from semi-finished carton stitching to stacking the finished cartons. Simple and convenient operation helps reduce labor requirements.
• Automatic counting at the rear section. Finished cartons can be automatically counted and grouped into stacks according to the preset quantity, from 1 to 99 sheets, and then delivered to the end of the conveyor.
• Suitable for both regular slotted cartons and die-cut cartons with flaps.
• Touchscreen control system. The stitching pitch can be directly set on the touchscreen for convenient operation and adjustment.
• The entire stitching head assembly is manufactured from high-quality die steel and precision-machined using CNC equipment, ensuring durability and reliable performance.
• The bottom die and blades are made of high-quality tungsten carbide, providing excellent wear resistance and extended service life.
• Stitching Pitch: 30–120 mm, continuously adjustable.

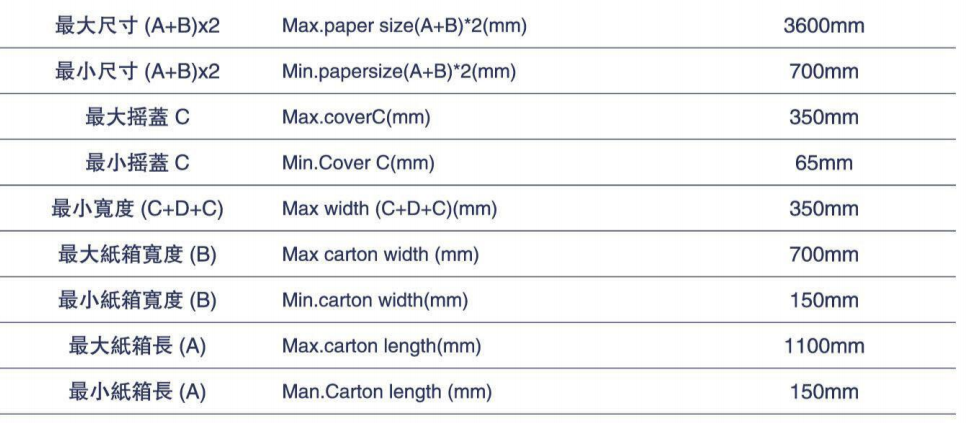

Relevant parameters:
