The Fully Automatic Corrugated Box Flexo Printing Machine is a high-performance solution designed for efficient and stable printing on corrugated sheets. With a high level of automation, the machine provides high-speed production, accurate printing, and consistent printing quality.

The carton printing machine is mainly used for printing text, graphics, logos, and other designs on corrugated sheets for the production of corrugated boxes and packaging products.

The machine can be configured according to different production requirements. Slotting and die-cutting functions are available as optional configurations, allowing customers to select the functions they need and create a suitable corrugated box converting solution.

With advanced feeding, flexographic printing, and control systems, the machine provides smooth sheet feeding, precise printing registration, easy operation, and reliable performance. Customized configurations are available for different sheet sizes, printing requirements, and production capacities.

Performance Features：

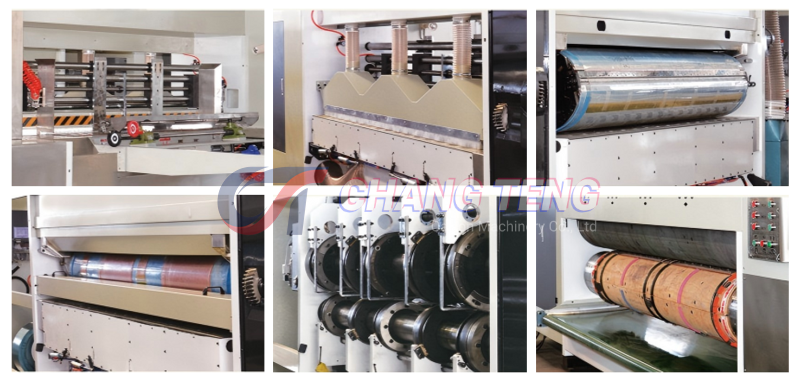

• All machine shafts undergo dynamic balancing and balance correction to ensure smooth and stable operation.The machine adopts a full vacuum transfer system with roller feeding. Airflow and vacuum sections can be independently and evenly adjusted to ensure accurate and stable sheet feeding.All transmission gears are made of high-quality 20CrMnTi alloy steel, processed by high-frequency heat treatment and precision grinding, with a Rockwell hardness of ≥60 HRC. High-quality materials and components are used throughout the machine. All transmission rollers are made of high-quality steel and finished with hard chrome plating and surface grinding for durability and wear resistance.Keyless locking devices are used to reduce shaft and hub wear, minimize backlash, and maintain accurate long-term printing registration.Automatic zero positioning and automatic reset functions improve operation efficiency and simplify machine setup.An automatic lubricating oil-level balancing system maintains a consistent oil level across all machine units.The machine is equipped with an independent computer control console that can store frequently used job settings, enabling fast job changeovers and convenient operation.All machine units can be automatically or independently engaged and disengaged. A continuous audible warning is activated when the units are moving to ensure operator safety.The gap adjustment mechanisms for the transfer rollers, impression rollers, rubber rollers, and anilox rollers adopt a self-locking structure, ensuring stable and precise adjustment.The machine adopts a closed-chamber dual-doctor-blade system. In combination with the ceramic anilox roller, it supports flexible selection of anilox roller specifications from 180 to 550 lines, providing precise ink transfer and stable printing quality.

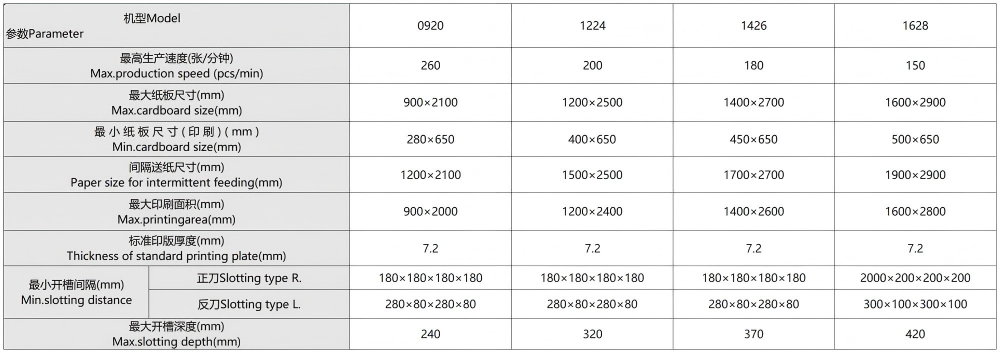

Machine Specifications：
