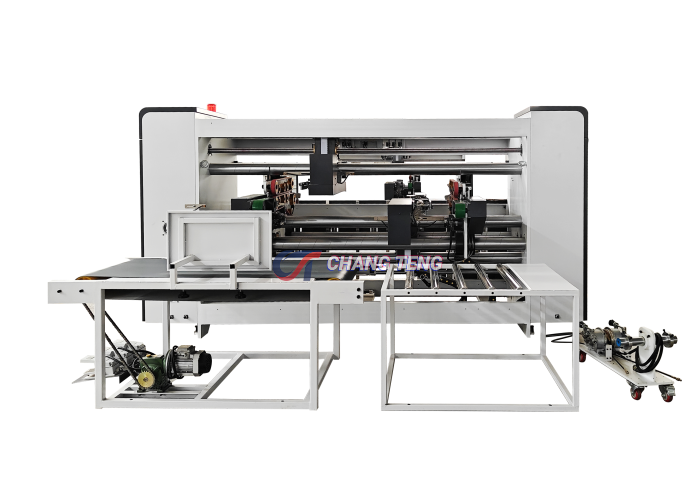

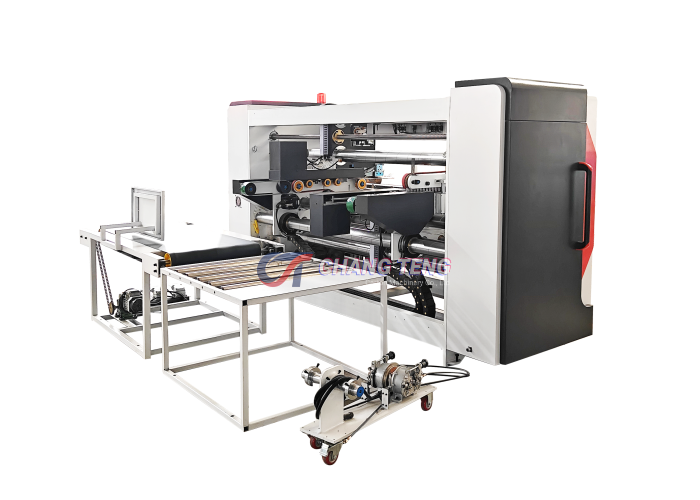

The Semi-Automatic Two-Piece Carton Stitching Machine is a commonly used carton converting machine for the production of printed and corrugated cartons. It features a four-servo control system and combines two functions in one machine. It can stitch both single-piece formed cartons and two-piece formed cartons, providing greater flexibility for different carton production requirements.

The stitching system supports single stitching, double stitching, and reinforced stitching, which can be completed in one operation. The machine is particularly suitable for large-size cartons, offering fast and labor-saving stitching. The stitching pitch can be automatically adjusted through the computer control system.

It is suitable for processing 3-ply and 5-ply large corrugated cartons. 7-ply carton production is available as a customized solution.

Product Details

Four-Servo Drive System

The machine is equipped with four servo motors, including two stitching-head motors and two feeding motors. The servo-driven system provides high positioning accuracy and responsive operation while reducing the number of mechanical transmission components, which helps lower the mechanical failure rate and improve machine reliability.

PLC Control System

The entire machine adopts a PLC-based control system for precise and reliable operation.

High-Quality Electrical Components

• Contactors inside the electrical control cabinet are from Siemens.
• Relays and circuit breakers are from Schneider Electric.
• Photoelectric sensors and proximity switches are from OMRON.

Durable Stitching Components

• The bottom die and blades are made of high-quality tungsten carbide for excellent wear resistance.
• The complete stitching-head assembly is manufactured from special alloy steel and precision-machined using CNC equipment for durability and accurate stitching.

Automatic Carton Size Adjustment

The computer control system automatically adjusts the carton flap dimensions. Four-way adjustable positioning guides allow the machine to handle different carton shapes, including irregular cartons, cartons with flaps, and open-top cartons.

Automatic Counting and Stacking

The rear section is equipped with an automatic counting system. Finished cartons can be automatically counted and grouped according to a preset quantity from 1 to 99 sheets, then delivered to the end of the conveyor for convenient bundling and strapping.

High-Speed Stitching

The machine operates at a maximum speed of 600 stitches per minute.

The stitching-head drive uses a servo-synchronized timing belt direct-drive system, providing fast response, high transmission efficiency, and rapid stitching performance.

Two-in-One Stitching Function

One machine provides two stitching functions and can process:

• Single-piece connected cartons
• Two-piece connected cartons
• Irregular-shaped cartons

It supports single stitching, double-row stitching, and reinforced stitching, which can be completed in one operation.

Automatic Stitching Wire Feeding

The machine features an automatic wire feeding system and supports 20 kg large rolls of flat stitching wire, helping reduce the frequency of wire replacement and save operating time.

Computer-Controlled Stitching Pitch

The stitching pitch can be automatically adjusted through the computer control system.

Stitching Pitch: 30–120 mm, continuously adjustable.

Automatic Adjustment for Different Carton Specifications

The machine uses full computer-controlled automatic adjustment for carton dimensions. Different carton sizes can be automatically changed over in approximately one minute, providing fast and accurate size adjustment.

Production orders can also be stored in the control system for convenient repeat production.

The machine can be connected to a production management system and supports order changeover by barcode/QR code scanning, depending on the customer’s production management requirements.

Multi-Layer Corrugated Board Adjustment

The machine is designed to process different corrugated board thicknesses, including 3-ply, 5-ply, and 7-ply cartons. The paper pressing gap and carton flap dimensions can be adjusted through the computer control system for fast and accurate setup.

Electrical Protection System

The machine is equipped with an electrically isolated voltage-regulating transformer protection system, helping protect the control system and electrical components and extending their service life.

Enhanced Chain Drive Design

The machine uses an overrunning clutch connection for the chain drive, providing reliable transmission and smooth operation.

Stitching Modes

Available stitching modes include:

• Double diagonal stitching
• Single diagonal stitching
• Reinforced stitching

Intelligent Fault Display

The computer screen displays fault information and troubleshooting instructions, making it easier for operators to identify problems and perform maintenance.

Main Advantages

• Four-servo drive system
• Single-piece and two-piece carton stitching
• Single, double, and reinforced stitching
• Maximum speed of 600 stitches/min
• Automatic carton size adjustment
• Stitching pitch of 30–120 mm
• Automatic counting and stacking
• 20 kg large-roll automatic wire feeding
• Suitable for 3-ply and 5-ply large cartons
• 7-ply carton processing available as a customized solution
• PLC control system
• Computerized fault display
• Order storage and quick order changeover
• Optional connection to production management systems
• Fast setup and reduced labor requirements

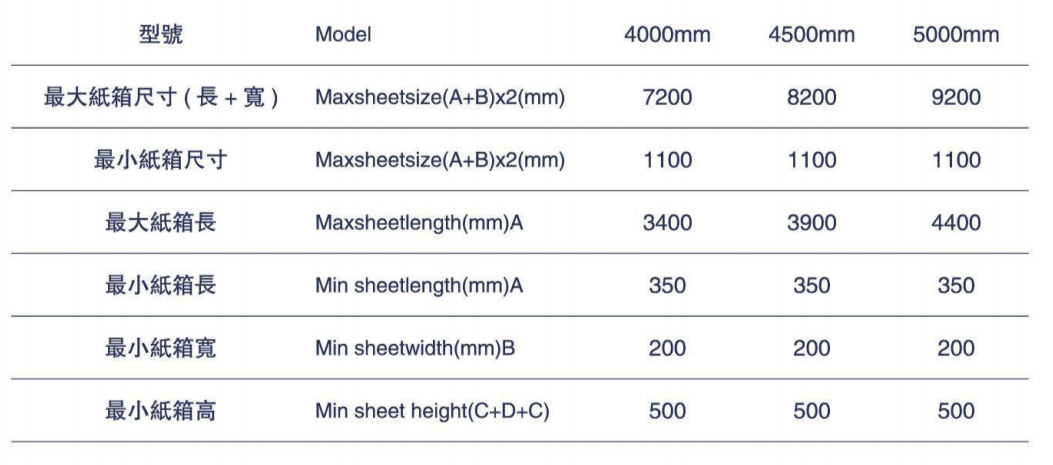

Relevant parameters:
