Product Introduction：

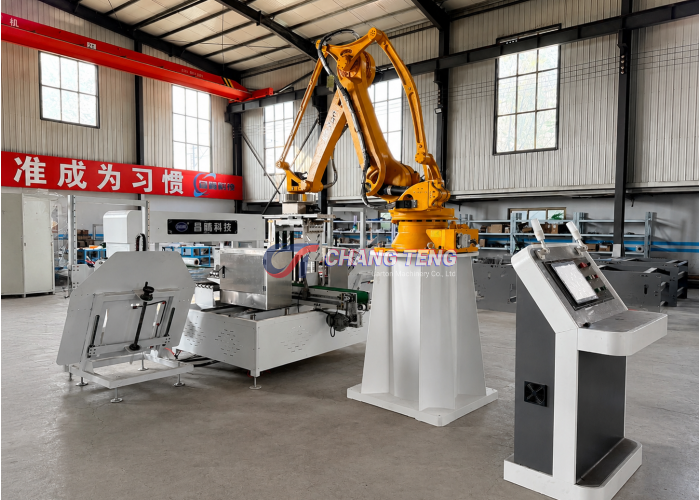

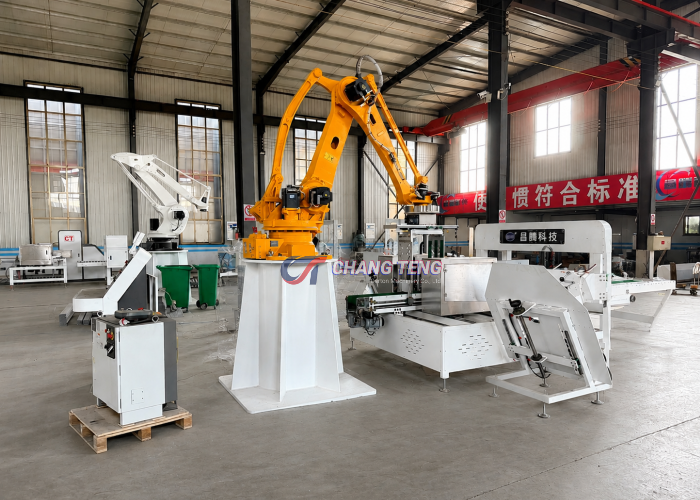

The Robotic Carton Bundle Palletizer is an automated palletizing system designed for carton and corrugated box production lines. It uses an industrial articulated robot to automatically pick, transfer, and neatly stack carton bundles onto pallets according to preset palletizing patterns.

The system integrates a robotic palletizing unit, customized gripper, conveyor system, pallet positioning system, safety system, and control system. It can be flexibly configured according to different carton sizes, bundle specifications, pallet sizes, and production line layouts.

Key Features：

• Automatic picking and palletizing of carton bundles
• Neat and stable stacking with precise positioning
• Flexible palletizing patterns for different production requirements
• Suitable for different carton and bundle sizes
• Reduces manual labor and improves production efficiency
• Can be integrated with carton production lines, folder gluers, stitchers, and conveyors
• Automatic operation with reliable safety and control systems
• Optional turning and conveying units according to plant layout

Applications

The robotic carton bundle palletizer is suitable for carton manufacturing plants, corrugated box factories, and Carton Production Lines, especially for automated end-of-line handling and palletizing of bundled cartons.

Functions & Features：

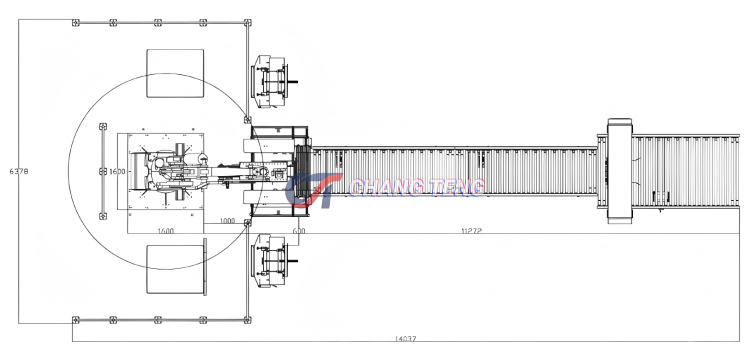

The system consists of a palletizing robot, robotic gripper system, conveyor system, dual sheet interlayer feeding mechanism, pre-aligning and turning machine, safety system, and control system.

A turning conveyor can be optionally equipped according to the available plant space and layout.

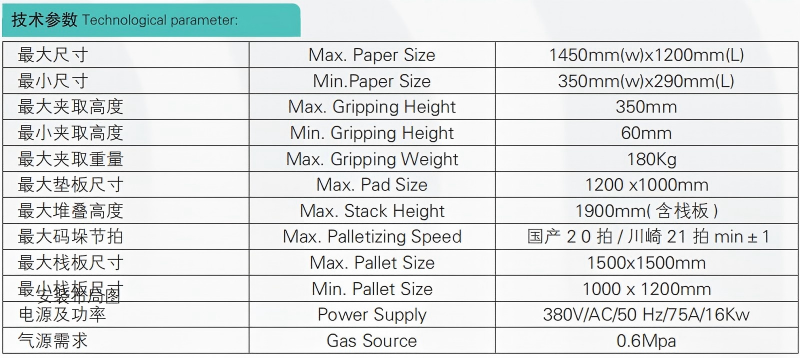

Machine Specifications：
